What is Kubernetes?

Introduction

Container-based microservices architectures have profoundly changed the way development and operations teams test and deploy modern software. Large and small software companies alike are now deploying thousands of container instances daily, and that’s a complexity of scale they have to manage.

What is Kubernetes

Kubernetes is an open-source system for automating deployment, scaling, and management of containerized applications. It was originally designed by Google and is now maintained by the Cloud Native Computing Foundation.

The most common cloud providers offering fully managed services for Kubernetes are

  1. EKS - Amazon Elastic Kubernetes Services
  2. AKS - Microsoft Azure Kubernetes Service
  3. GKE - Google Kubernetes Engine

Kubernetes Components and Architecture

Kubernetes follows a client-server architecture . Kubernetes cluster has a master node and a whole lot of worker nodes which is where your applications would actually run.

Kubectl command line tool that interacts with kube-apiserver and send commands to the master node. Each command is converted into an API call.

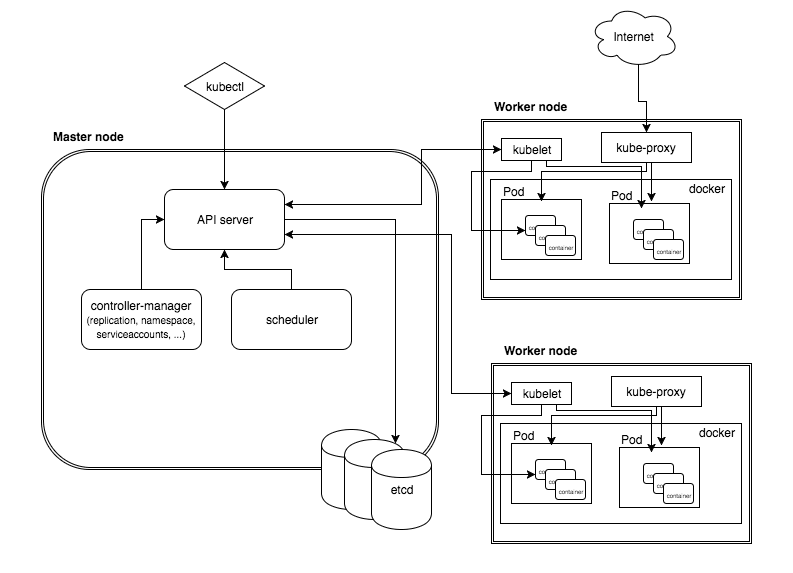

Kubernetes Components and Architecture

Master node is responsible for managing whole cluster. It monitors the health check of all nodes in the cluster.

Four basic components of the master node (control plane):

  1. API server : centralized component where all the cluster components are communicated
  2. Scheduler : responsible for assigning your application to worker node
  3. Controller manager : maintains the cluster, it handles node failures, replicating components, maintaining the correct number of pods
  4. Etcd : data store that stores the cluster configuration

Worker node are nothing but a virtual machine(VM’s) running in cloud or on-prem, a physical server running inside your data center

Three basic components of the Worker Node (Data plane)

  1. Kubelet : runs and manages the containers on node and it talks to API server
  2. Kube-proxy : load balances traffic between application components
  3. Container runtime : a software that executes containers and manages container images on a node(eg. Docker)

Pods are smallest unit of deployment in Kubernetes as container is smallest unit of deployment in Docker


Kubernetes Security Attack Surface

There are various ways that an attacker could attempt to compromise Kubernetes cluster and the applications running on it.

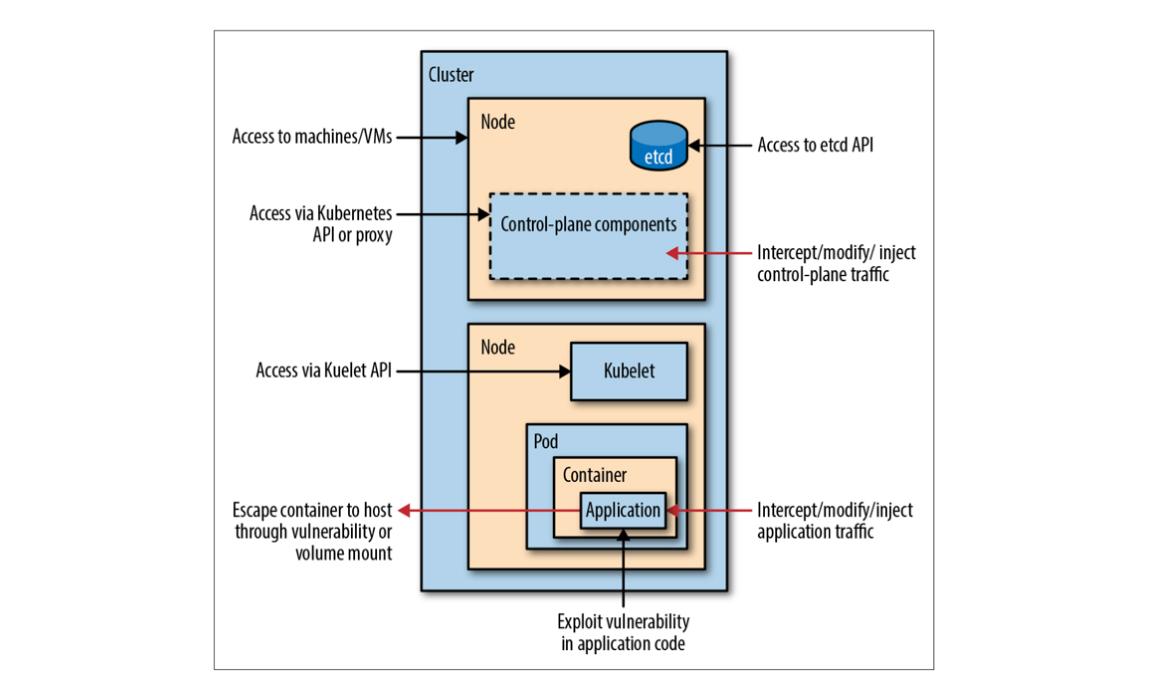

Kubernetes Attack Surfaces

Kubernetes Security Best Practices

Image Scanning

  • Continuously scan your CI/CD pipeline and registries for vulnerabilities, hardcoded-secrets, malware and configuration issues.
  • Prevent untrusted and unapproved images from running anywhere in the cluster

RBAC

  • Enforce fine-grained access control roles (RBAC) and policies that manage access to kubectl commands by specific Kubernetes deployments and nodes
  • Regulate access to computer or network resources based on the roles of individual users within the organization
  • Define permissions on namespaced resources and be granted within individual namespace(s)
  • Define permissions on namespaced resources and be granted across all namespaces
  • Define permissions on cluster-scoped resources

Secret Management

  • ensure that containerized code can read only the secrets that it needs
  • Use different set of secrets for different environments (like production, development, and testing).
  • Secrets should be protected at rest by encrypting the traffic between the Kubernetes control-plane components using TLS
  • Use tools such as Helm, helm-secrets is a great tool for managing secrets and storing them with encrypted version control.

Assurance

  • Check cluster and node configuration against CIS Kubernets Benchmark tests

Runtime profiles

  • Implement automated container level security profiles that detect anomalies and prevent non-whitelisted operations

Audit and Monitoring

  • Ensure Kubernetes-specific information, such as pod name, type, deployment and namespace data, in addition to user access, container start/stop and other events

Network Policies

  • Implement network policy using network policy plugins on how Pod are allowed to communicate with each other and other network endpoints. By default, pods are non-isolated; they accept traffic from any source

Container Firewall

  • Control network traffic with container level firewall rules based on kubernets namespace, cluster and deployments using plugins such as Flannel, Calico etc.
